Search for pluto_grid in pub.dev and add the package to your project.
pub.dev to install pluto_grid
And add PlutoGrid to your screen by referring to the example code below.
import 'package:flutter/material.dart';
import 'package:pluto_grid/pluto_grid.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'PlutoGrid Example',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: const PlutoGridExamplePage(),
);
}
}
/// PlutoGrid Example
//
/// For more examples, go to the demo web link on the github below.
class PlutoGridExamplePage extends StatefulWidget {
const PlutoGridExamplePage({Key? key}) : super(key: key);
@override
State<PlutoGridExamplePage> createState() => _PlutoGridExamplePageState();
}
class _PlutoGridExamplePageState extends State<PlutoGridExamplePage> {
final List<PlutoColumn> columns = <PlutoColumn>[
PlutoColumn(
title: 'Id',
field: 'id',
type: PlutoColumnType.text(),
),
PlutoColumn(
title: 'Name',
field: 'name',
type: PlutoColumnType.text(),
),
PlutoColumn(
title: 'Age',
field: 'age',
type: PlutoColumnType.number(),
),
PlutoColumn(
title: 'Role',
field: 'role',
type: PlutoColumnType.select(<String>[
'Programmer',
'Designer',
'Owner',
]),
),
PlutoColumn(
title: 'Joined',
field: 'joined',
type: PlutoColumnType.date(),
),
PlutoColumn(
title: 'Working time',
field: 'working_time',
type: PlutoColumnType.time(),
),
];
final List<PlutoRow> rows = [
PlutoRow(
cells: {
'id': PlutoCell(value: 'user1'),
'name': PlutoCell(value: 'Mike'),
'age': PlutoCell(value: 20),
'role': PlutoCell(value: 'Programmer'),
'joined': PlutoCell(value: '2021-01-01'),
'working_time': PlutoCell(value: '09:00'),
},
),
PlutoRow(
cells: {
'id': PlutoCell(value: 'user2'),
'name': PlutoCell(value: 'Jack'),
'age': PlutoCell(value: 25),
'role': PlutoCell(value: 'Designer'),
'joined': PlutoCell(value: '2021-02-01'),
'working_time': PlutoCell(value: '10:00'),
},
),
PlutoRow(
cells: {
'id': PlutoCell(value: 'user3'),
'name': PlutoCell(value: 'Suzi'),
'age': PlutoCell(value: 40),
'role': PlutoCell(value: 'Owner'),
'joined': PlutoCell(value: '2021-03-01'),
'working_time': PlutoCell(value: '11:00'),
},
),
];
/// columnGroups that can group columns can be omitted.
final List<PlutoColumnGroup> columnGroups = [
PlutoColumnGroup(title: 'Id', fields: ['id'], expandedColumn: true),
PlutoColumnGroup(title: 'User information', fields: ['name', 'age']),
PlutoColumnGroup(title: 'Status', children: [
PlutoColumnGroup(title: 'A', fields: ['role'], expandedColumn: true),
PlutoColumnGroup(title: 'Etc.', fields: ['joined', 'working_time']),
]),
];

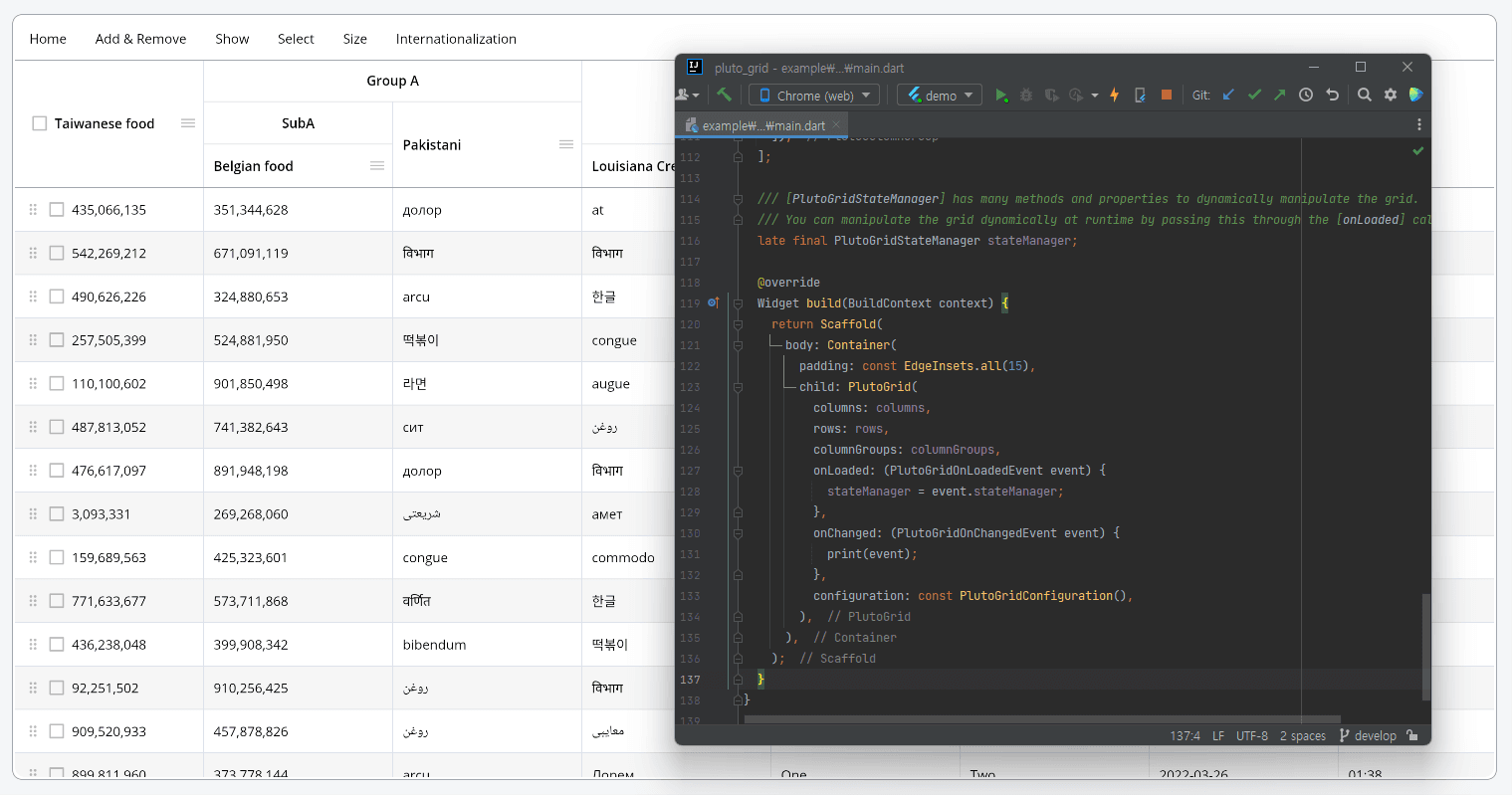

/// [PlutoGridStateManager] has many methods and properties to dynamically manipulate the grid.
/// You can manipulate the grid dynamically at runtime by passing this through the [onLoaded] callback.
late final PlutoGridStateManager stateManager;
@override
Widget build(BuildContext context) {
return Scaffold(
body: Container(
padding: const EdgeInsets.all(15),
child: PlutoGrid(
columns: columns,
rows: rows,
columnGroups: columnGroups,
onLoaded: (PlutoGridOnLoadedEvent event) {
stateManager = event.stateManager;
},
onChanged: (PlutoGridOnChangedEvent event) {
print(event);
},
configuration: const PlutoGridConfiguration(),
),
),
);
}
}
Columns and rows can start with an empty list.
Column groups can be excluded if not needed.PlutoColumn.field
cannot be duplicated.
The keys in PlutoRow.cells
must be defined to match PlutoColumn.field
.
