Pluto packages in Flutter

Pluto packages in Flutter

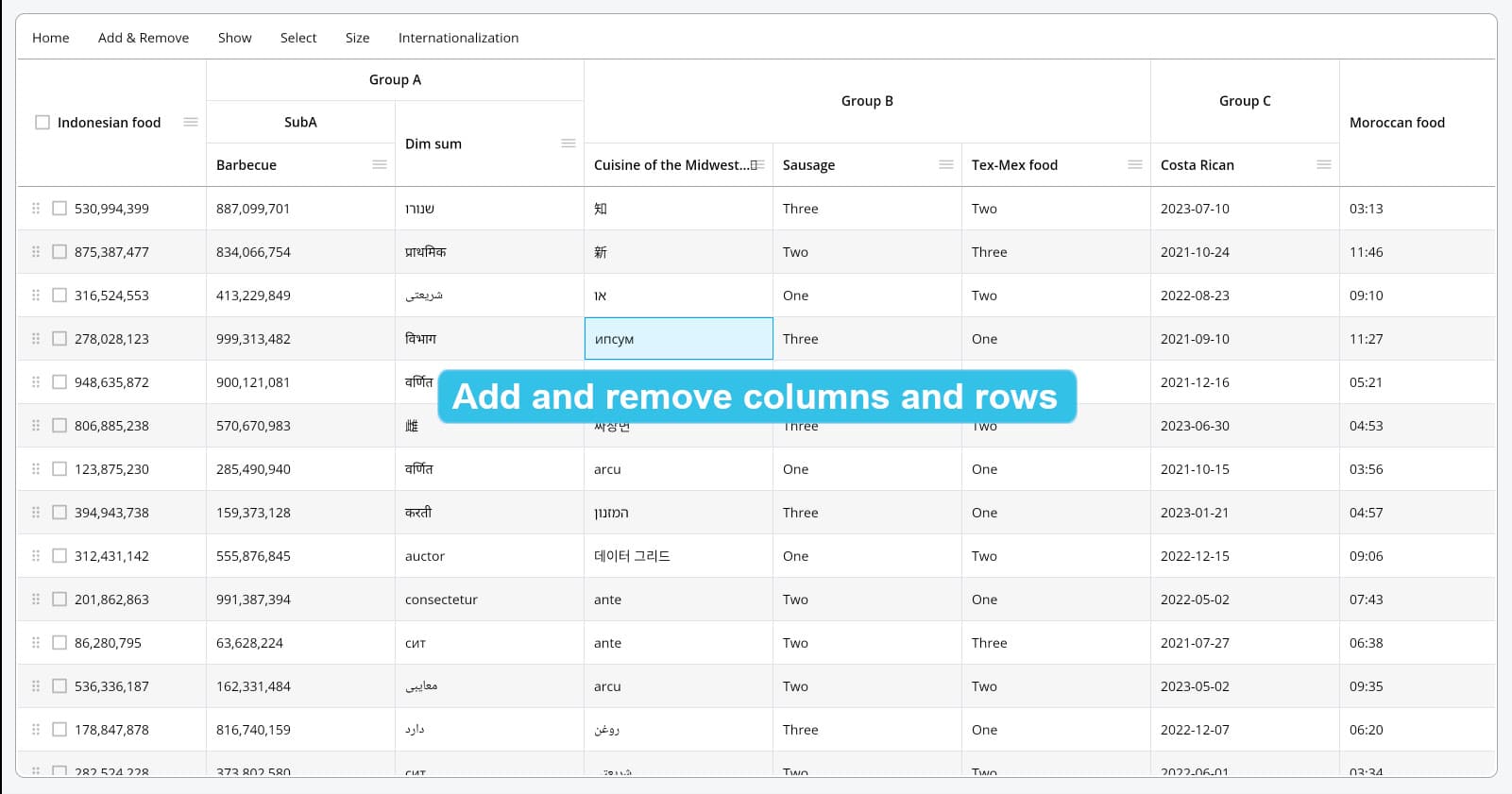

Add and remove columns and rows.

Add and remove columns and rows.

manki kim's photo
manki kim
·Jul 15, 2022·

3 min read

Subscribe to my newsletter and never miss my upcoming articles

After setting columns and rows in the constructor of PlutoGrid, how to add columns and rows during runtime and precautions are described.

Setting up columns and rows when creating a grid

PlutoGrid can set columns and rows in the constructor when creating the first grid as follows.

Note: Do not set columns and rows in the build method when setting columns and rows for the first time.

class DemoScreenState extends State<DemoScreen> {
  final List<PlutoColumn> columns = [];

  final List<PlutoRow> rows = [];

  late PlutoGridStateManager stateManager;

  @override
  void initState() {
    super.initState();

    columns.addAll([
      PlutoColumn(
        title: 'name',
        field: 'name_field',
        type: PlutoColumnType.text(),
      ),
      PlutoColumn(
        title: 'age',
        field: 'age_field',
        type: PlutoColumnType.number(),
      ),
    ]);

    rows.addAll([
      PlutoRow(cells: {
        'name_field': PlutoCell(value: 'Mike.'),
        'age_field': PlutoCell(value: 20),
      }),
      PlutoRow(cells: {
        'name_field': PlutoCell(value: 'John.'),
        'age_field': PlutoCell(value: 21),
      }),
    ]);
  }

  @override
  Widget build(BuildContext context) {
    // Do not add columns or rows here.
    return Scaffold(
      body: Container(
        padding: const EdgeInsets.all(15),
        child: PlutoGrid(
          columns: columns,
          rows: rows,
        ),
      ),
    );
  }
}

Add or remove columns and rows after grid creation

After columns and rows are set in the PlutoGrid constructor, to add or delete columns or rows, you have to do it through PlutoGridStateManager.

PlutoGridStateManager can be delivered through onLoaded callback function when PlutoGrid is created.

late final PlutoGridStateManager stateManager;

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      padding: const EdgeInsets.all(15),
      child: PlutoGrid(
        columns: columns,
        rows: rows,
        onLoaded: (event) => stateManager = event.stateManager,
      ),
    ),
  );
}

Through the received PlutoGridStateManager, columns or rows can be added when a callback function such as onTap or stream.listen of the button is called.

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Column(
      children: [
        TextButton(
          onPressed: () {
            // Be careful not to duplicate field names when adding columns.
            final int lastIndex = stateManager.refColumns.originalList.length;

            stateManager.insertColumns(0, [
              PlutoColumn(
                title: 'new column $lastIndex',
                field: 'new_field_$lastIndex',
                type: PlutoColumnType.text(),
              )
            ]);
          },
          child: const Text('Add column'),
        ),
        Expanded(
          child: Container(
            padding: const EdgeInsets.all(15),
            child: PlutoGrid(
              columns: columns,
              rows: rows,
              onLoaded: (event) => stateManager = event.stateManager,
            ),
          ),
        ),
      ],
    ),
  );
}

The methods related to adding and removing columns and rows of PlutoGridStateManager are as follows.

// Add `columns` in place of `columnIdx`.
void insertColumns(int columnIdx, List<PlutoColumn> columns);

// Remove all `columns`.
void removeColumns(List<PlutoColumn> columns);

// Add `rows` in place of `rowIdx`.
void insertRows(
    int rowIdx,
    List<PlutoRow> rows, {
    bool notify = true,
  });

// Add new rows of length `count` before the first row.
void prependNewRows({
  int count = 1,
});

// Add `rows` to the beginning of the first row.
void prependRows(List<PlutoRow> rows);

// Add new rows of length `count` after the last row.
void appendNewRows({
  int count = 1,
});

// Add `rows` after the last row.
void appendRows(List<PlutoRow> rows);

// Remove the currently focused row.
void removeCurrentRow();

// Remove `rows` Remove all.
void removeRows(List<PlutoRow> rows);

// Remove all rows.
void removeAllRows({bool notify = true});

How to asynchronously append a large number of rows

If the number of rows to be added at once is large, the UI may freeze due to the load on the CPU operation. In this case, the CPU operation can be processed asynchronously.

Below is a link to a demo page that works on the web. You can also check the example source code by tapping the Source button on the demo page.

Add rows asynchronously
